HEAT RECOVERY VENTILATOR QRXF-150

Short Description:


Product Detail

Product Tags

Key Features:



1. Replacement of indoor air to maintain indoor constant oxygen, continuous discharge of indoor dirty gas to ensure indoor air health and achieve the building's respiratory function;

2. The fresh air section of the whole machine is equipped with G4 primary filter + medical high-efficiency filter; the return air section is equipped with high-efficiency HEPA filter, which can be filtered.

More than 99.9% PM2.5 particles in the air;

3. Simple operation, LCD controller;

4. Energy-saving and comfortable; recover more than 71% of the energy in exhaust air, reduce the temperature difference between indoor and outdoor gas, achieve the purpose of comfort and energy-saving;

5. Designed with bottom open door, make maintenance of filter screen and heat exchange core easier.



Specifications:



SPECIFICATIONS

Model

QRXF-150

Power

106W

Air volume

150m³/h

Voltage

110-220V/50-60Hz

Heat exchange rate

65%-85%

Air pipe diameter

φ125

Machine size(mm)

670*535*230

Package size(mm)

870*610*280

Qty of Container

20FT-168PCS
40HQ-405PCS



Packages:

Exporting brown carton with foams and plastic bags.

Be able to print customer's logo.

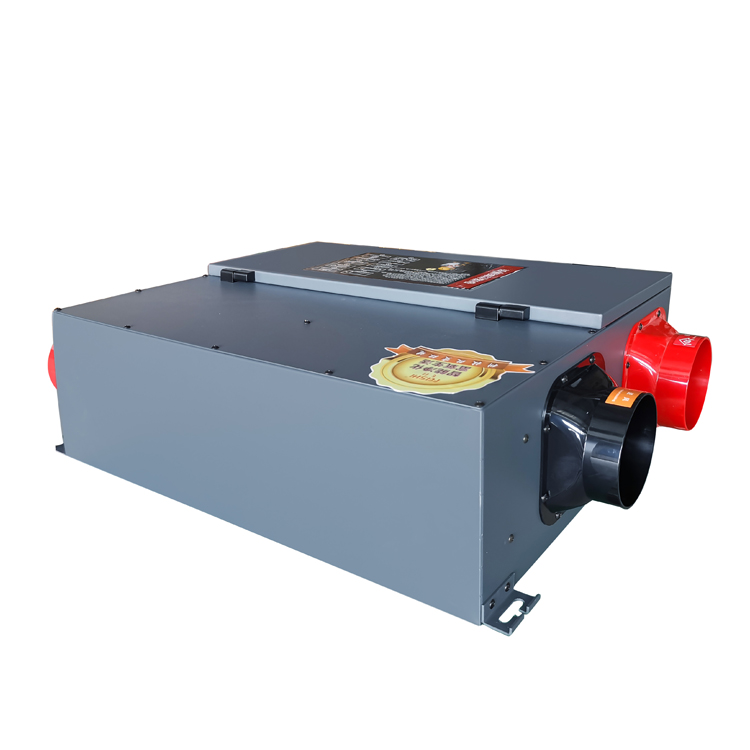

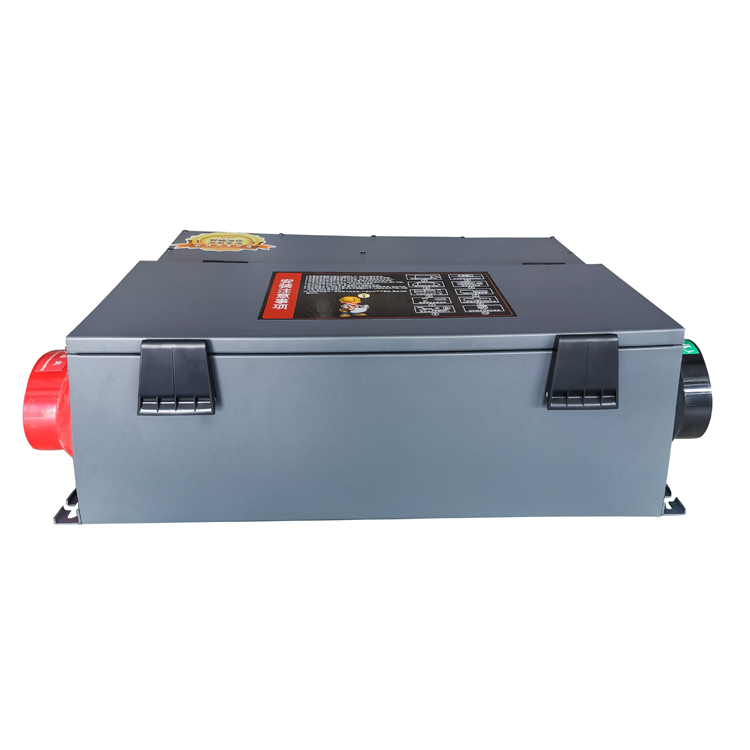

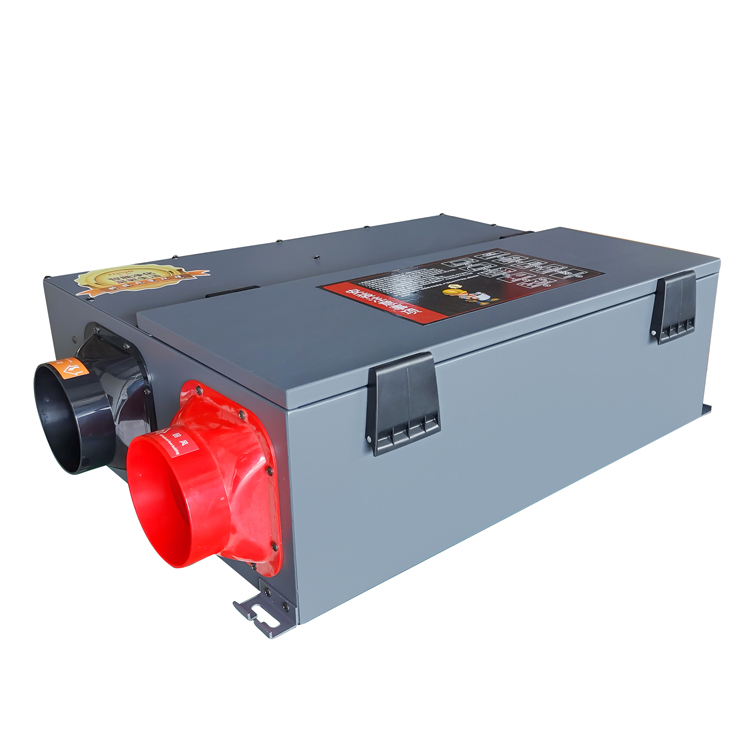

Heat recovery ventilator QRXF-150 (1)
